touch panel controller-Wireless multi zone series

FOB Reference Price:Get Latest Price
US $1-35 / Pieces | 30 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LTECH
Model Number:
D4
Input voltage:
AC100~240V
Output signal:
RF 2.4G+DMX512
Control mode:
4 Zones control
RF Remote distance:
30m
Working temperature:
-20℃~60℃
Dimensions:
L86XW86XH36mm
Package Size:
L112XW112XH48mm
Weight (N.W.):
225g
warranty:
5 years
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
natural packing
Weight (N.W.) 210g
Port
zhuhai
Lead Time :
3-7 working days after received your payment

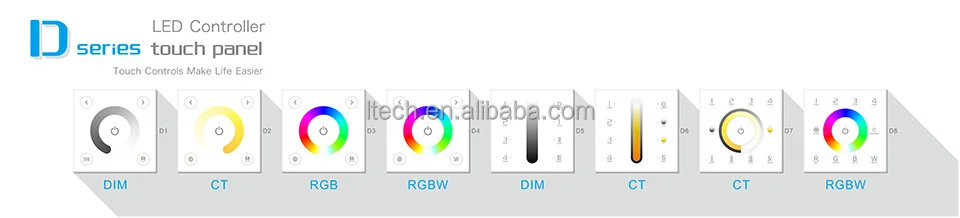

D series touch panel controller—Wireless multi-zone series



D series wall-mounted touch panel controller –Wireless multi-zone series is widely installed in commercial / office/household, which has four types: single color/CT/RGB/RGBW control with 2.4G wireless zones’ control and cable output DMX512 signal. Apply for various kinds LEDs.



D Series Touch Panel Controller is the essence of others technology to provide you a high quality product.

  • Base on 2.4Hz wireless multi-zone control, no wiring trouble.
  • Can choose DMX 512 output, control DMX lamps.
  • Support 4 zones, different zones can be in different control.
  • simple fashion and decent appearance design.
  • Unique structure, super easy to install/remove.
  • high accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.
  • Fool type operation, easy to use.
  • Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
  • Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance.

DX8

Input voltageAC100~240V
Output signalRF 2.4G+DMX512
Gray scale level4096×4096×4096×4096
Remote option4 Zones control
RF Remote distance30m
Working temperature-20°C~60°C
DimensionsL86×W86×H36mm
Package SizeL112×W112×H48mm
Weight (N.W.)210g

R4-5A CV Zone Receiving controller

Working Frequency2.4GHz
Input voltageDC5V~DC24V
Max current load5A x4CH Max 20A
Max output power100W/240W/480W(5V/12V/24V)
Remote Distance30m
Working temperature-30°C~55°C
DimensionsL175×W44×H30mm
Package sizeL178×W48×H33mm
Weight (G.W.)110g

R4-CC CC Zone Receiving controller

Working Frequency2.4GHz
Input voltageDC12V~DC48V
Output voltageDC3V~46V
Output currentCC 350/700/1050mA×4CH(3 in 1)
Output power1.05W-48.3W×4CH Max 193.2W
Remote Distance30m
Working temperature-30°C~55°C
DimensionsL175×W44×H30mm
Package sizeL178×W48×H33mm
Weight (G.W.)110g
