Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: LTECH
  • Model Number: DA1, DA2, DA3, DA4
  • Type: touch panel
  • Max. Load Power: none
  • Voltage: 220V
  • Output signal: DALI digital dimming signal
  • Power Supply: DALI BUS
  • More Function: Scene, Group, Unicast, Broadcast
  • working temperature: -20℃~60℃
  • Dimension: L86*W86*H36(mm)
  • Package Size: L113*W112*H50(mm)
  • Weight (G.W): 200g
  • warranty: 5 years of free maintenance
  • failure rate: less than 0.1%
  • touch material: glass

Packaging & Delivery

Packaging Details white box and carton
Packing size :L113*W112*H50(mm)
Delivery Time 3-7 working days after received your payment
DALI Dimmer Switch New High Quality Glass LED DALI Control DALI Master


DALI is the young generation lighting control protocol in the realm of lighting control at present, Which adopt Manchester encoding transmission, With overall, grouping dimming, addressing dimming, various scene mode set, brightness traced, etc. powerful dimming function. Modern top grade hotel, shopping mall, household increasingly request high standard to lighting system. DALI protocol bus-mastering with simple, reliable, superior function etc. features, are used widely, showing the powerful advantage in the realm of intelligent lighting control.

DALI bus-mastering protocol is the intelligent lighting master match using with the dimmable ballast before , used to adjust the lighting scenarios of the fluorescent. DALI LED dimmer launched by LTECH which following the IEC62386/IEC60929 standard, can connect any equipment that accord with DALI protocol to 1 DALI bus-mastering ,which realize the LED lighting products and traditional lighting integrated in the same lighting system , greatly facilitate the users.

Product parameter

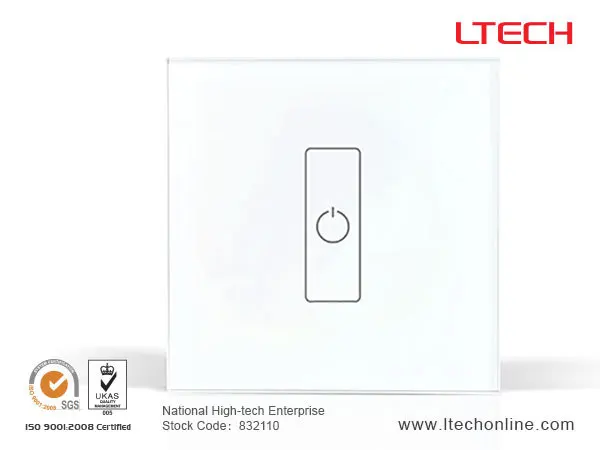

    • DA1  DALI Dimmer

      Output signalDALI digital dimming signal
      Power SupplyDALI BUS
      Dimming Button1CH
      More FunctionScene, Group, Unicast, Broadcast
      working temperature-20℃~60℃
      DimensionL86×W86×H36(mm)
      Package SizeL113×W112×H50(mm)
      Weight (G.W)200g

    • DA2  DALI Dimmer

      Output signalDALI digital dimming signal
      Power SupplyDALI BUS
      Dimming Button2CH
      More FunctionScene, Group, Unicast, Broadcast
      working temperature-20℃~60℃
      DimensionL86×W86×H36(mm)
      Package SizeL113×W112×H50(mm)
      Weight (G.W)200g

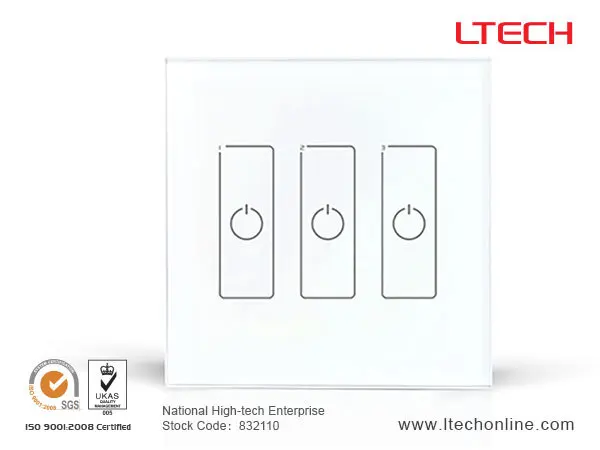

    • DA3  DALI Dimmer

      Output signalDALI digital dimming signal
      Power SupplyDALI BUS
      Dimming Button3CH
      More FunctionScene, Group, Unicast, Broadcast
      working temperature-20℃~60℃
      DimensionL86×W86×H36(mm)
      Package SizeL113×W112×H50(mm)
      Weight (G.W)200g

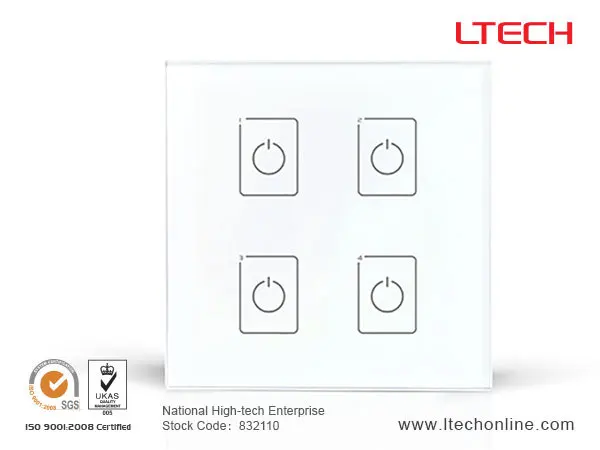

  • DA4  DALI Dimmer

    Output signalDALI digital dimming signal
    Power SupplyDALI BUS
    Dimming Button4CH
    More FunctionScene, Group, Unicast, Broadcast
    working temperature-20℃~60℃
    DimensionL86×W86×H36(mm)
    Package SizeL113×W112×H50(mm)
    Weight (G.W)200g
