Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LTECH
  • Model Number: LT-932-OLED
  • Type: Manual Switch
  • Max. Load Power: (0~36W...72W) x32CH Max.2304W
  • Voltage: DC5V-DC24V
  • Input voltage: DC5V-24V
  • Dimming range: 0~100%
  • Input signal: DMX512
  • Max load current: 32CH*3A
  • Max output power: (0~36W...72W) x32CH Max.2304W
  • DMX512 socket: XLR-3, RJ45, Green terminal (with signal amplification function)
  • Certificates: CE FCC ROHS
  • Warranty: 5 Years
  • Name: LT-932-OLED
  • Keyword: LTECH 32 channels led DMX512 decoder RGB RGBW DMX controller

Packaging & Delivery

Packaging Details Inner Box Outter Standard Packaging Carton, or as customers' requirement.
Delivery Time Shipped in 3 days after payment

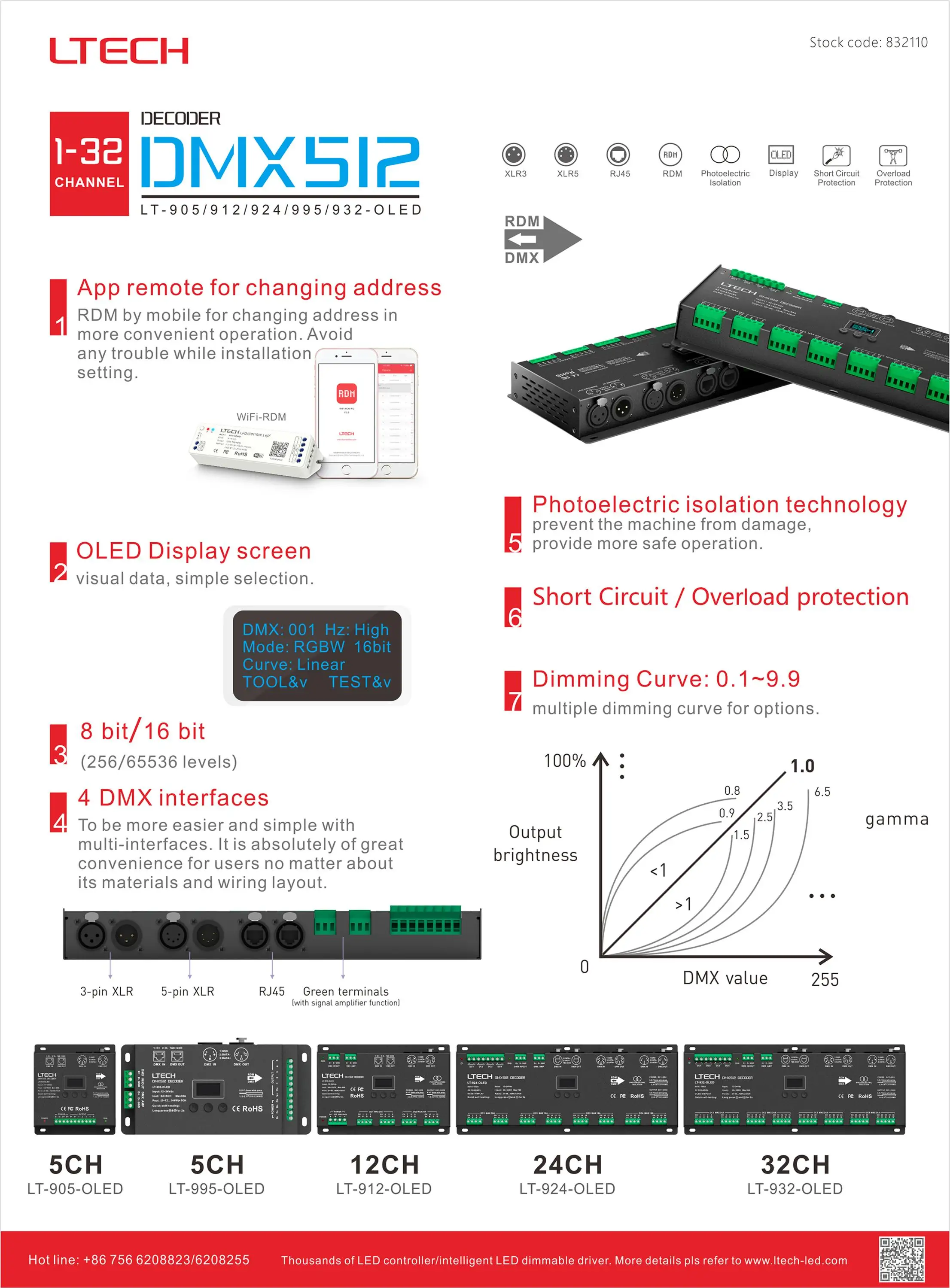

Hi-power multiple 32 channels 5 pins XLR OLED dmx512 decoder

Product Introduction:
  • 1. Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power.
  • 2. Easy operation with OLED screen and the touch buttons.
  • 3. 4 kinds of mode optional: single color, color temperature, RGB, RGBW.
  • 4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function).
  • 5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
  • 6. With photoelectric isolation function.
  • 7. With shortcut protection and over load protection, as well as warning function when fault.
  • 8. With fast self-testing function.
  • 9. 16bit / 8bit resolution optional.
  • 10. Multiple dimming curve (0.1~9.9) optional.



Input signalDMX512/RDM
Input voltageDC12V~DC24V
Max load current3A ×32CH   Max. 96A
Max output power(0~36W...72W) x32CH Max.2304W
DMX512 socketXLR-3, XLR-5, RJ45, Green terminal
Control modeDIM/CT/RGB/RGBW
DIM Curve0.1~9.9
Gray scale level8bit(256 levels)/16bit(65536 levels)
Photoelectric IsolationYes
Working temperature-30℃~65℃
DimensionL300×W122×H39(mm)
Package SizeL309×W127×H41(mm)
Weight (G.W)1050g
